关于Unity中DepthOfField的记录

发表于 更新于
作者 Jauved
13 分钟阅读
关于Unity中DepthOfField的记录

关于定制Unity中DepthOfField的记录

00 前言

  • 策划需要将景深进行分段控制

  • 直接对深度进行重映射是最方便的做法

  • https://www.desmos.com/calculator/outz8ciqgx

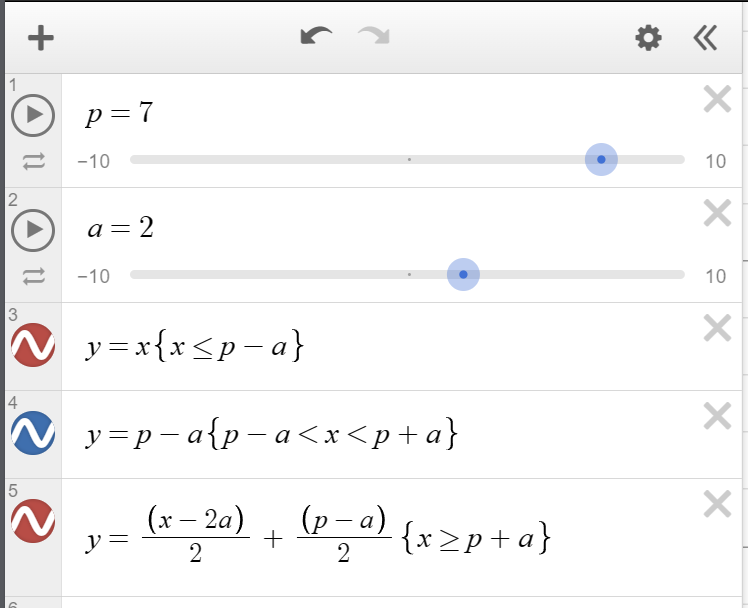

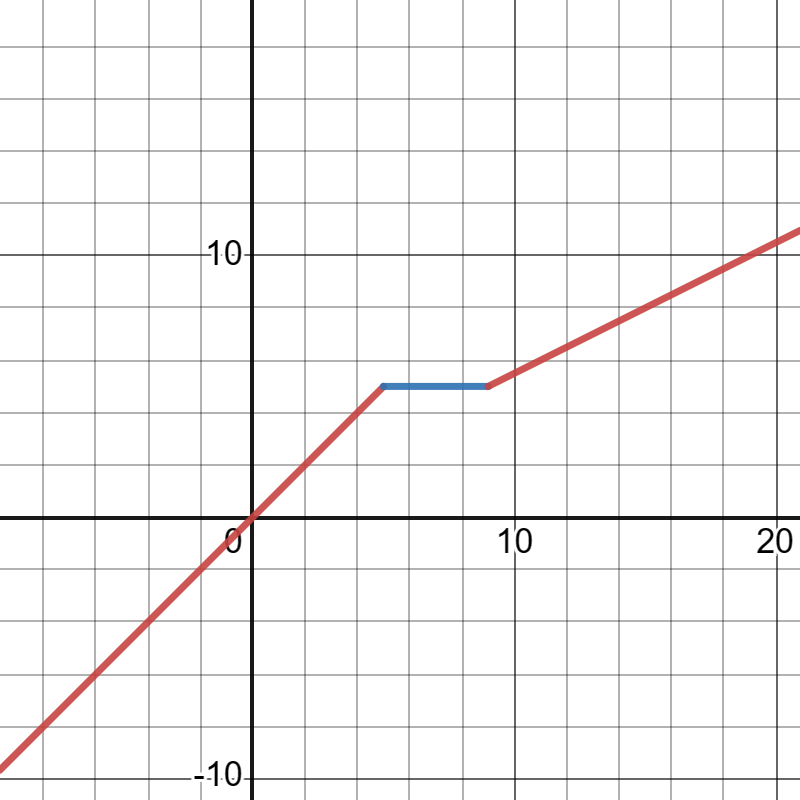

    desmos-graphimage-20231012210548195

  • 我希望斜率不仅仅是2, 而是可以是任何值, 且方程连续
    • y=(x-2a)/k+i
    • 且x=p+a时, y=p-a
    • 求出i=(p-a)(1-1/k)
    • 最后y=(x-2a)/k+(p-a)(1-1/k).
  • https://www.desmos.com/calculator/5aebyotklu

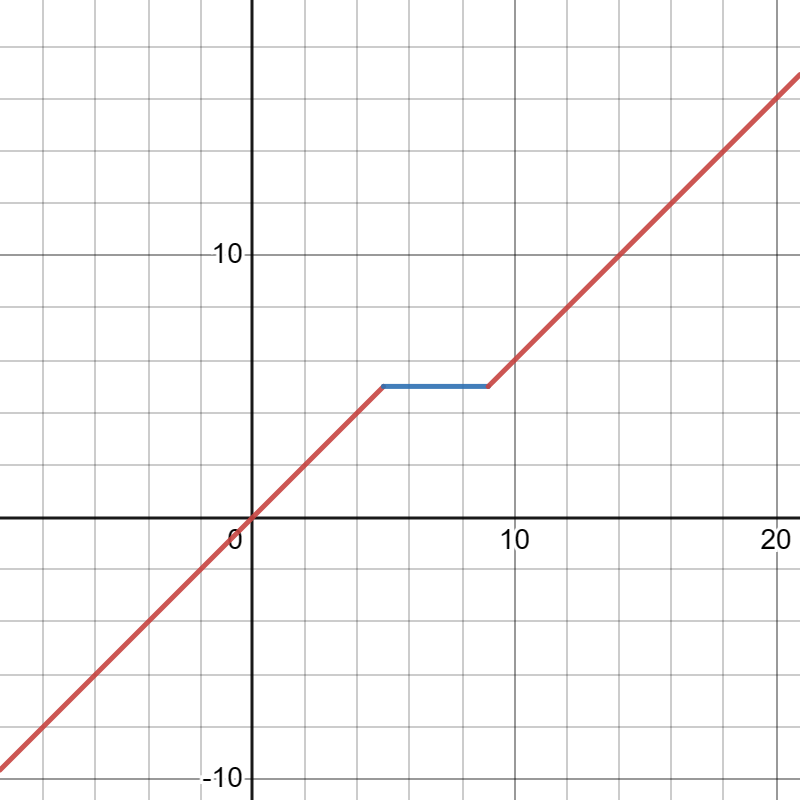

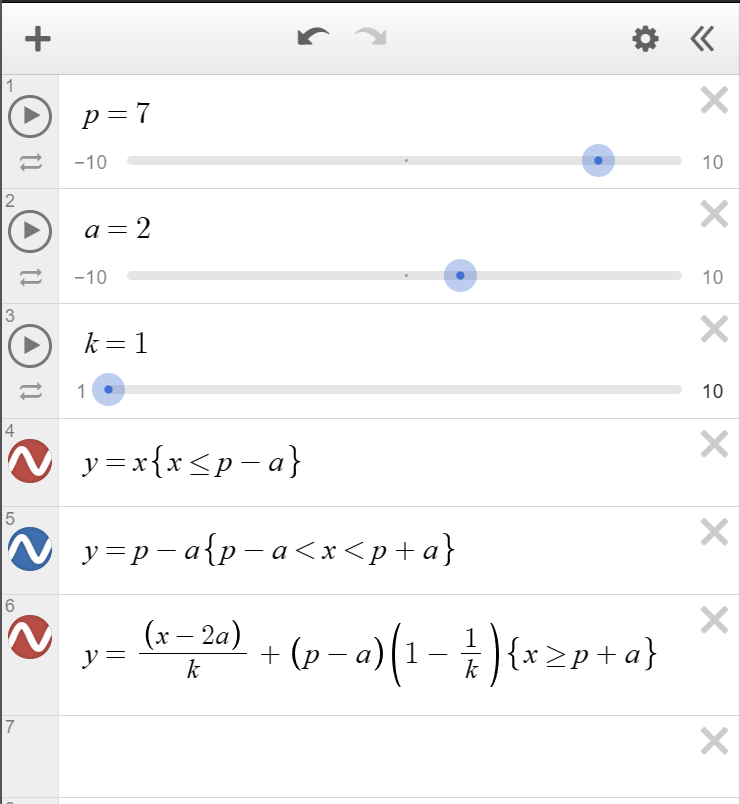

  • desmos-graph (1)image-20231012211205892

01 初版

初始版本关键代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

        //Changed
        //P面板=p-a
        //p=p面板+a
        //使用k改变变化速率,将远近的模糊程度分开
        //Todo 优化算法, 消除if
        float a = 2.0;
        float p = 7.0;
        float k = 3;//斜率
        if (linearEyeDepth <= p - a)
        {
            linearEyeDepth = linearEyeDepth;
        }
        else if (linearEyeDepth > p - a && linearEyeDepth < p + a)
        {
            linearEyeDepth = p - a;
        }
        else if (linearEyeDepth >= p + a)
        {
            linearEyeDepth = (linearEyeDepth - 2.0 * a) / k + (p - a) * (1.0 - 1 / k);
        }
        //Changed

02 优化

考虑到if...else在着色器中效率不高, 这里使用step进行了优化.

1
2
3
4
5
6

        float condition1 = step(p - a, linearEyeDepth) * step(linearEyeDepth, p + a);
        float condition2 = step(p + a, linearEyeDepth);

        linearEyeDepth = condition1 * (p - a) +
        condition2 * ((linearEyeDepth - 2.0 * a) / k + (p - a) * (1.0 - 1 / k)) +
        (1.0 - condition1 - condition2) * linearEyeDepth;

当然, 这里可以用rcp(k)来把除法消除进行优化

1
2
3
4
5
6
7

        float invK = rcp(k);
        float condition1 = step(p - a, linearEyeDepth) * step(linearEyeDepth, p + a);
        float condition2 = step(p + a, linearEyeDepth);

        linearEyeDepth = condition1 * (p - a) +
        condition2 * ((linearEyeDepth - 2.0 * a) * invK + (p - a) * (1.0 - invK)) +
        (1.0 - condition1 - condition2) * linearEyeDepth;

但是, 实际上, 1/k这个值可以在传入之前就计算完毕, 所以更进一步, invK的计算直接交给CPU即可.

彩色石头

在搜索rcp(x)的时候, 找到了一些好玩的东西.

  • Packages/com.unity.render-pipelines.core@14.0.8/Runtime/PostProcessing/Shaders/ffx/ffx_a.hlsl文件中, 关于*FLOAT APPROXIMATIONS*(浮动近似值)的部分有如下注释

    1
2
3
4
5
6
7
8
9
10
11
12
13
14

    //==============================================================================================================================
//                                                    FLOAT APPROXIMATIONS
//------------------------------------------------------------------------------------------------------------------------------
// Michal Drobot has an excellent presentation on these: "Low Level Optimizations For GCN",
//  - Idea dates back to SGI, then to Quake 3, etc.
//  - https://michaldrobot.files.wordpress.com/2014/05/gcn_alu_opt_digitaldragons2014.pdf
//     - sqrt(x)=rsqrt(x)*x
//     - rcp(x)=rsqrt(x)*rsqrt(x) for positive x
//  - https://github.com/michaldrobot/ShaderFastLibs/blob/master/ShaderFastMathLib.h
//------------------------------------------------------------------------------------------------------------------------------
// These below are from perhaps less complete searching for optimal.
// Used FP16 normal range for testing with +4096 32-bit step size for sampling error.
// So these match up well with the half approximations.
//==============================================================================================================================

  • 其中的pdf文件有一些特别的优化方式, 当然, pdf是2014年的, 无法保证仍旧有效, 毕竟硬件发展迅速.

  • Packages/com.unity.render-pipelines.core@14.0.8/ShaderLibrary/API/GLES2.hlsl中, 由于rcp(x)函数的不支持, 所以有如下预定义#define rcp(x) 1.0 / (x)

  • 关于rcp(x)的兼容性, 还有这一篇文章unity shader SSAO 环境光屏蔽 rcp 函数 bug - 知乎 (zhihu.com)

    •
```c++
#if (SHADER_TARGET < 50 && !defined(SHADER_API_PSSL))
float rcp(float value)
{
    return 1.0 / value;
}
#endif

  • 总之就是, 要使用rcp(x)函数, 需要用额外的语句保证兼容性.

03 另一种方式

之前用的是定位 $p$ 点, 然后前后扩展 $a$ 距离的方式, 现在是定好近位置 $m$ 和远位置 $n$ 然后来处理, 代码修改如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

        // float a = 2.0;
        // float p = 7.0;
        float k = 3;//斜率//
        float invK = rcp(k);

        // float condition1 = step(p - a, linearEyeDepth) * step(linearEyeDepth, p + a);
        // float condition2 = step(p + a, linearEyeDepth);
        //
        // linearEyeDepth = condition1 * (p - a) +
        // condition2 * ((linearEyeDepth - 2.0 * a) * invK + (p - a) * (1.0 - invK)) +
        // (1.0 - condition1 - condition2) * linearEyeDepth;

        float m = 5;
        float n = 9;

        float condition1 = step(m, linearEyeDepth) * step(linearEyeDepth, n);
        float condition2 = step(n, linearEyeDepth);
        linearEyeDepth = condition1 * m + condition2 * ((linearEyeDepth - (n - m)) * invK +
            m * (1.0 - invK)) + (1.0 - condition1 - condition2) * linearEyeDepth;

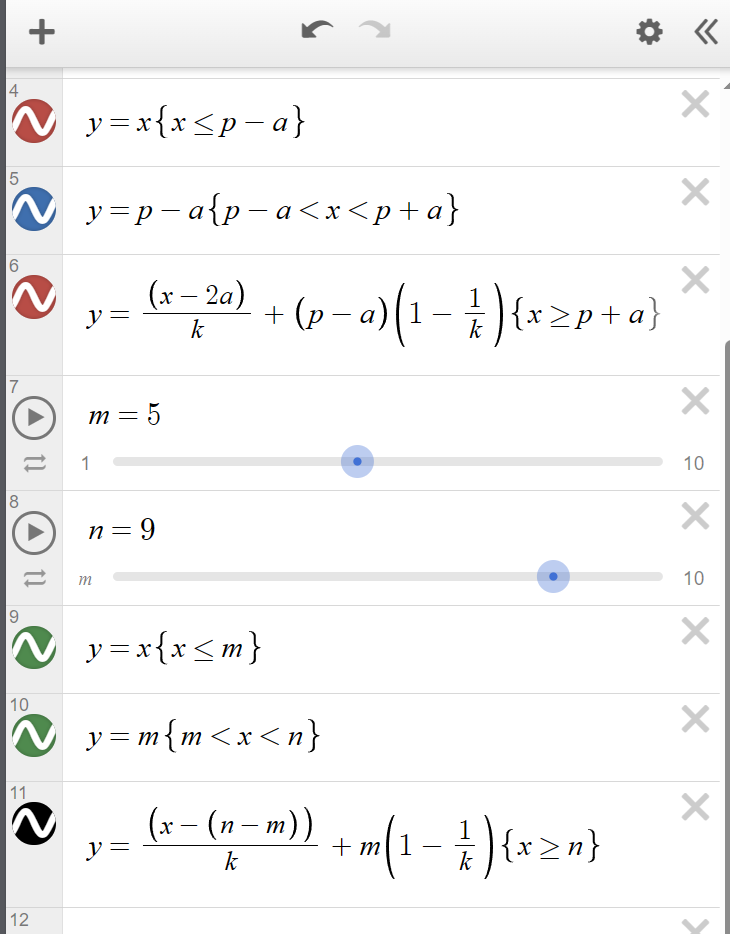

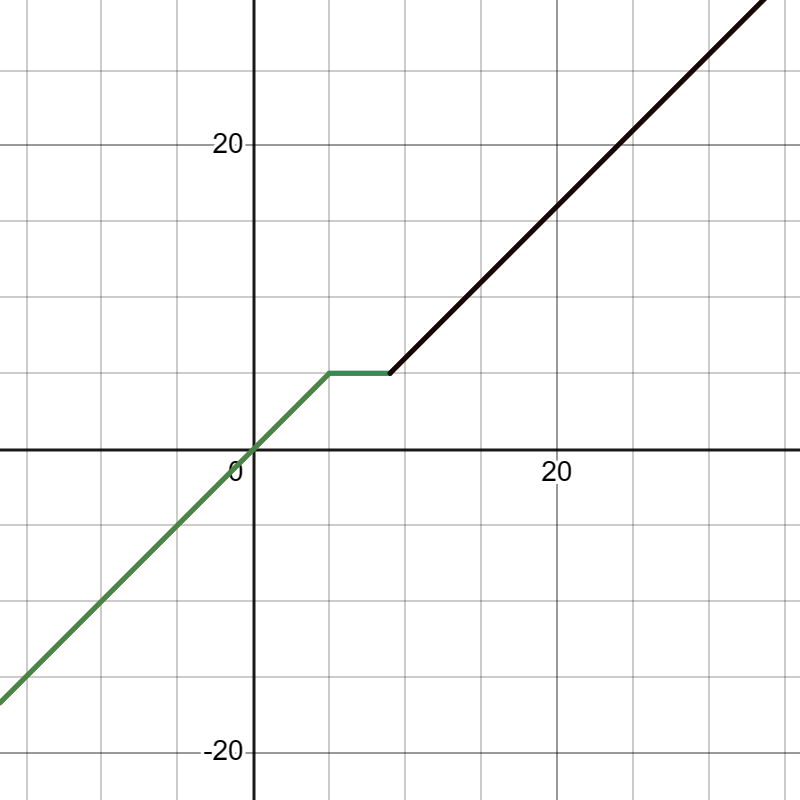

图像如下: desmos-graph (2)image-20231013170825374

04 定制记录

注释标识: //C10132023

涉及文件:

  • 着色器: Packages/com.unity.render-pipelines.universal@14.0.8/Shaders/PostProcessing/BokehDepthOfField.shader
  • 面板: Packages/com.unity.render-pipelines.universal@14.0.8/Runtime/Overrides/DepthOfField.cs Packages/com.unity.render-pipelines.universal@14.0.8/Editor/Overrides/DepthOfFieldEditor.cs
  • Pass: Packages/com.unity.render-pipelines.universal@14.0.8/Runtime/Passes/PostProcessPass.cs

彩色石头:

参考网页:

Depth Of Field | Universal RP | 14.0.9 (unity3d.com)

图形学基础|景深效果（Depth of Field/DOF）_后处理dof 原理-CSDN博客

光学成像原理之景深(Depth of Field)-CSDN博客

Unity Shader PostProcessing - 7 - DepthOfField(DOF)景深-CSDN博客

完整代码

shader代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52

half FragCoCV2(Varyings input) : SV_Target
{
    UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX(input);

    uint w;
    uint h;
    #if defined(SHADER_API_GLCORE)
        // GetDimensions will use textureQueryLevels in OpenGL and that's not
        // supported in OpenGL 4.1 or below. In that case we use _MainTex_TexelSize
        // which is fine as we don't support dynamic scaling in OpenGL.
        w = _MainTex_TexelSize.z;
        h = _MainTex_TexelSize.w;
    #elif defined(UNITY_STEREO_INSTANCING_ENABLED) || defined(UNITY_STEREO_MULTIVIEW_ENABLED)
        uint x;
        _CameraDepthTexture.GetDimensions(w, h, x);
    #else
    _CameraDepthTexture.GetDimensions(w, h);
    #endif

    float2 uv = UnityStereoTransformScreenSpaceTex(input.uv);
    float depth = LOAD_TEXTURE2D_X(_CameraDepthTexture, float2(w, h) * uv).x;
    float linearEyeDepth = LinearEyeDepth(depth, _ZBufferParams);

    //C10132023
    float m = _CoCParams.x;
    float n = _FarClearPlane;
    float invK = _FarBlurAttend;

    float condition1 = step(m, linearEyeDepth) * step(linearEyeDepth, n);
    float condition2 = step(n, linearEyeDepth);
    linearEyeDepth = condition1 * m + condition2 * ((linearEyeDepth - (n - m)) * invK +
        m * (1.0f - invK)) + (1.0f - condition1 - condition2) * linearEyeDepth;
    //C10132023

    half coc = (1.0h - FocusDist / linearEyeDepth) * MaxCoC;
    half nearCoC = clamp(coc, -1.0h, 0.0h);
    half farCoC = saturate(coc);

    return saturate((farCoC + nearCoC + 1.0h) * 0.5h);
}

...
Pass
{
    Name "Bokeh Depth Of Field CoC Ver 2"

    HLSLPROGRAM
    #pragma vertex Vert
    #pragma fragment FragCoCV2
    #pragma target 3.0
    ENDHLSL
}

Pass代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84

void DoDepthOfField(Camera camera, CommandBuffer cmd, int source, int destination, Rect pixelRect)
{
    if (m_DepthOfField.mode.value == DepthOfFieldMode.Gaussian)
        DoGaussianDepthOfField(camera, cmd, source, destination, pixelRect);
    else if (m_DepthOfField.mode.value == DepthOfFieldMode.Bokeh)
        DoBokehDepthOfField(cmd, source, destination, pixelRect);
    //C10132023
    else if (m_DepthOfField.mode.value == DepthOfFieldMode.BokehVer2)
    {
        DoBokehDepthOfFieldV2(cmd, source, destination, pixelRect);
    }
    //C10132023
}

...

void DoBokehDepthOfFieldV2(CommandBuffer cmd, int source, int destination, Rect pixelRect)
{
    m_DepthOfField.nearClearPlane.value = URPUserData.NearClearPlane;
    m_DepthOfField.farClearPlane.value = URPUserData.FarClearPlane;
    m_DepthOfField.farBlurAttend.value = URPUserData.FarBlurAttend;
    m_DepthOfField.focalLength.value = URPUserData.FocalLength;
    m_DepthOfField.aperture.value = URPUserData.Aperture;

    var material = m_Materials.bokehDepthOfField;
    int wh = m_Descriptor.width / 2;
    int hh = m_Descriptor.height / 2;

    // "A Lens and Aperture Camera Model for Synthetic Image Generation" [Potmesil81]
    float F = m_DepthOfField.focalLength.value / 1000f;
    float A = m_DepthOfField.focalLength.value / m_DepthOfField.aperture.value;
    //C10132023
    // float P = m_DepthOfField.focusDistance.value;
    float P = m_DepthOfField.nearClearPlane.value / 100f;
    //C10132023
    float maxCoC = (A * F) / (P - F);
    float maxRadius = GetMaxBokehRadiusInPixels(m_Descriptor.height);
    float rcpAspect = 1f / (wh / (float)hh);
    //C10132023
    float N = m_DepthOfField.farClearPlane.value / 100f; //因为是厘米
    float farBlurAttend = m_DepthOfField.farBlurAttend.value;
    cmd.SetGlobalFloat(ShaderConstants._FarClearPlane, N);
    cmd.SetGlobalFloat(ShaderConstants._FarBlurAttend, farBlurAttend);
    //C10132023

    cmd.SetGlobalVector(ShaderConstants._CoCParams, new Vector4(P, maxCoC, maxRadius, rcpAspect));

    // Prepare the bokeh kernel constant buffer
    int hash = m_DepthOfField.GetHashCode();
    if (hash != m_BokehHash)
    {
        m_BokehHash = hash;
        PrepareBokehKernel();
    }

    cmd.SetGlobalVectorArray(ShaderConstants._BokehKernel, m_BokehKernel);

    // Temporary textures
    cmd.GetTemporaryRT(ShaderConstants._FullCoCTexture, GetStereoCompatibleDescriptor(m_Descriptor.width, m_Descriptor.height, GraphicsFormat.R8_UNorm), FilterMode.Bilinear);
    cmd.GetTemporaryRT(ShaderConstants._PingTexture, GetStereoCompatibleDescriptor(wh, hh, GraphicsFormat.R16G16B16A16_SFloat), FilterMode.Bilinear);
    cmd.GetTemporaryRT(ShaderConstants._PongTexture, GetStereoCompatibleDescriptor(wh, hh, GraphicsFormat.R16G16B16A16_SFloat), FilterMode.Bilinear);

    // Compute CoC
    cmd.Blit(source, ShaderConstants._FullCoCTexture, material, 5);
    cmd.SetGlobalTexture(ShaderConstants._FullCoCTexture, ShaderConstants._FullCoCTexture);

    // Downscale & prefilter color + coc
    cmd.Blit(source, ShaderConstants._PingTexture, material, 1);

    // Bokeh blur
    cmd.Blit(ShaderConstants._PingTexture, ShaderConstants._PongTexture, material, 2);

    // Post-filtering
    cmd.Blit(ShaderConstants._PongTexture, BlitDstDiscardContent(cmd, ShaderConstants._PingTexture), material, 3);

    // Composite
    cmd.SetGlobalTexture(ShaderConstants._DofTexture, ShaderConstants._PingTexture);
    cmd.Blit(source, BlitDstDiscardContent(cmd, destination), material, 4);

    // Cleanup
    cmd.ReleaseTemporaryRT(ShaderConstants._FullCoCTexture);
    cmd.ReleaseTemporaryRT(ShaderConstants._PingTexture);
    cmd.ReleaseTemporaryRT(ShaderConstants._PongTexture);
}

面板, Runtime

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85

using System;

namespace UnityEngine.Rendering.Universal
{
    public enum DepthOfFieldMode
    {
        Off,
        Gaussian, // Non physical, fast, small radius, far blur only
        Bokeh,
        //C10132023
        BokehVer2
        //C10132023
    }

    [Serializable, VolumeComponentMenu("Post-processing/Depth Of Field")]
    public sealed class DepthOfField : VolumeComponent, IPostProcessComponent
    {
        [Tooltip("Use \"Gaussian\" for a faster but non physical depth of field; \"Bokeh\" for a more realistic but slower depth of field.")]
        public DepthOfFieldModeParameter mode = new DepthOfFieldModeParameter(DepthOfFieldMode.Off);

        [Tooltip("The distance at which the blurring will start.")]
        public MinFloatParameter gaussianStart = new MinFloatParameter(10f, 0f);

        [Tooltip("The distance at which the blurring will reach its maximum radius.")]
        public MinFloatParameter gaussianEnd = new MinFloatParameter(30f, 0f);

        [Tooltip("The maximum radius of the gaussian blur. Values above 1 may show under-sampling artifacts.")]
        public ClampedFloatParameter gaussianMaxRadius = new ClampedFloatParameter(1f, 0.5f, 1.5f);

        [Tooltip("Use higher quality sampling to reduce flickering and improve the overall blur smoothness.")]
        public BoolParameter highQualitySampling = new BoolParameter(false);

        [Tooltip("The distance to the point of focus.")]
        public MinFloatParameter focusDistance = new MinFloatParameter(10f, 0.1f);

        [Tooltip("The ratio of aperture (known as f-stop or f-number). The smaller the value is, the shallower the depth of field is.")]
        public ClampedFloatParameter aperture = new ClampedFloatParameter(5.6f, 1f, 32f);

        [Tooltip("The distance between the lens and the film. The larger the value is, the shallower the depth of field is.")]
        public ClampedFloatParameter focalLength = new ClampedFloatParameter(50f, 1f, 300f);

        [Tooltip("The number of aperture blades.")]
        public ClampedIntParameter bladeCount = new ClampedIntParameter(5, 3, 9);

        [Tooltip("The curvature of aperture blades. The smaller the value is, the more visible aperture blades are. A value of 1 will make the bokeh perfectly circular.")]
        public ClampedFloatParameter bladeCurvature = new ClampedFloatParameter(1f, 0f, 1f);

        [Tooltip("The rotation of aperture blades in degrees.")]
        public ClampedFloatParameter bladeRotation = new ClampedFloatParameter(0f, -180f, 180f);

        //C10132023
        /// <summary>
        /// 近清晰面与摄像机距离(厘米)
        /// </summary>
        [Tooltip("近清晰面与摄像机距离(厘米)")]
        public MinIntParameter nearClearPlane = new MinIntParameter(value: 500, 1);

        /// <summary>
        /// 远清晰面与摄像机距离(厘米)
        /// </summary>
        [Tooltip("远清晰面与摄像机距离(厘米)")]
        public MinIntParameter farClearPlane = new MinIntParameter(value: 900, min: 2);

        /// <summary>
        /// 远端模糊度强度
        /// </summary>
        [Tooltip("远端模糊度强度")]
        public ClampedFloatParameter farBlurAttend = new ClampedFloatParameter(value: 1.0f, min: 0.1f, max: 1.0f);
        //C10132023

        public bool IsActive()
        {
            if (mode.value == DepthOfFieldMode.Off || SystemInfo.graphicsShaderLevel < 35)
                return false;

            return mode.value != DepthOfFieldMode.Gaussian || SystemInfo.supportedRenderTargetCount > 1;
        }

        public bool IsTileCompatible() => false;
    }

    [Serializable]
    public sealed class DepthOfFieldModeParameter : VolumeParameter<DepthOfFieldMode> { public DepthOfFieldModeParameter(DepthOfFieldMode value, bool overrideState = false) : base(value, overrideState) { } }
}

面板, Editor

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95

using UnityEngine.Rendering.Universal;

namespace UnityEditor.Rendering.Universal
{
    [VolumeComponentEditor(typeof(DepthOfField))]
    sealed class DepthOfFieldEditor : VolumeComponentEditor
    {
        SerializedDataParameter m_Mode;

        SerializedDataParameter m_GaussianStart;
        SerializedDataParameter m_GaussianEnd;
        SerializedDataParameter m_GaussianMaxRadius;
        SerializedDataParameter m_HighQualitySampling;

        SerializedDataParameter m_FocusDistance;
        SerializedDataParameter m_FocalLength;
        SerializedDataParameter m_Aperture;
        SerializedDataParameter m_BladeCount;
        SerializedDataParameter m_BladeCurvature;
        SerializedDataParameter m_BladeRotation;

        //C10132023
        private SerializedDataParameter m_NearClearPlane;
        private SerializedDataParameter m_FarClearPlane;
        private SerializedDataParameter m_FarBlurAttend;
        //C10132023

        public override void OnEnable()
        {
            var o = new PropertyFetcher<DepthOfField>(serializedObject);

            m_Mode = Unpack(o.Find(x => x.mode));
            m_GaussianStart = Unpack(o.Find(x => x.gaussianStart));
            m_GaussianEnd = Unpack(o.Find(x => x.gaussianEnd));
            m_GaussianMaxRadius = Unpack(o.Find(x => x.gaussianMaxRadius));
            m_HighQualitySampling = Unpack(o.Find(x => x.highQualitySampling));

            m_FocusDistance = Unpack(o.Find(x => x.focusDistance));
            m_FocalLength = Unpack(o.Find(x => x.focalLength));
            m_Aperture = Unpack(o.Find(x => x.aperture));
            m_BladeCount = Unpack(o.Find(x => x.bladeCount));
            m_BladeCurvature = Unpack(o.Find(x => x.bladeCurvature));
            m_BladeRotation = Unpack(o.Find(x => x.bladeRotation));

            //C10132023
            m_NearClearPlane = Unpack(o.Find(x => x.nearClearPlane));
            m_FarClearPlane = Unpack(o.Find(x => x.farClearPlane));
            m_FarBlurAttend = Unpack(o.Find(x => x.farBlurAttend));
            //C10132023
        }

        public override void OnInspectorGUI()
        {
            if (UniversalRenderPipeline.asset?.postProcessingFeatureSet == PostProcessingFeatureSet.PostProcessingV2)
            {
                EditorGUILayout.HelpBox(UniversalRenderPipelineAssetEditor.Styles.postProcessingGlobalWarning, MessageType.Warning);
                return;
            }

            PropertyField(m_Mode);

            if (m_Mode.value.intValue == (int)DepthOfFieldMode.Gaussian)
            {
                PropertyField(m_GaussianStart, EditorGUIUtility.TrTextContent("Start"));
                PropertyField(m_GaussianEnd, EditorGUIUtility.TrTextContent("End"));
                PropertyField(m_GaussianMaxRadius, EditorGUIUtility.TrTextContent("Max Radius"));
                PropertyField(m_HighQualitySampling);
            }
            else if (m_Mode.value.intValue == (int)DepthOfFieldMode.Bokeh)
            {
                PropertyField(m_FocusDistance);
                PropertyField(m_FocalLength);
                PropertyField(m_Aperture);
                PropertyField(m_BladeCount);
                PropertyField(m_BladeCurvature);
                PropertyField(m_BladeRotation);
            }
            //C10132023
            else if (m_Mode.value.intValue == (int)DepthOfFieldMode.BokehVer2)
            {
                // PropertyField(m_FocusDistance);

                PropertyField(m_NearClearPlane);
                PropertyField(m_FarClearPlane);
                PropertyField(m_FarBlurAttend);
                PropertyField(m_FocalLength);
                PropertyField(m_Aperture);
                PropertyField(m_BladeCount);
                PropertyField(m_BladeCurvature);
                PropertyField(m_BladeRotation);
            }
            //C10132023
        }
    }
}
URP, 后处理
URP 后处理 DepthOfField
本文由作者按照 CC BY 4.0 进行授权
