景深后处理颜色溢出处理

景深后处理颜色溢出处理

00 前言

景深后处理开启时, 在物体边缘处会出现颜色溢出的问题.

经过排查, Unity在进行景深的剔除前, 就对景深的原图和Mask进行了模糊处理.

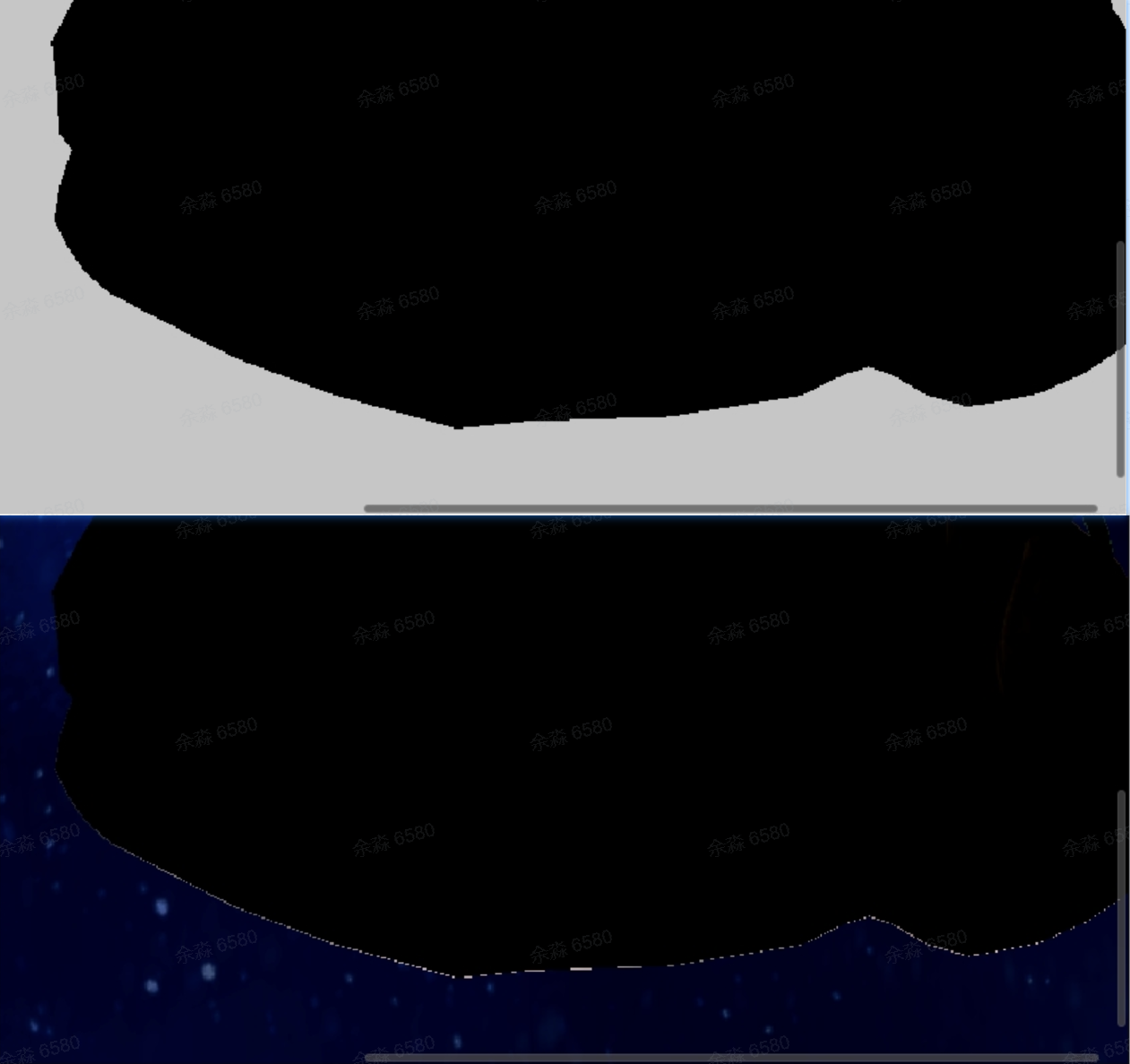

同时, 最根本的原因是深度图并不能”严格”的覆盖漫反射图. 推测原因是两张图片的格式, 深度图为R8, 而屏幕截图是RGB111110Float, 同时由于图片都是Bilinear的Filter方式, 导致无法严格的遮挡.

image-20231222105756929

01 处理方法

该处理方式会导致在明亮场景中出现分割线的问题, 抛弃.

采样原图时不做模糊. 这样可以减弱颜色溢出, 但如前图所示, 仍旧无法完全的进行遮蔽.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87

half4 FragPrefilter(Varyings input) : SV_Target
{
    UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX(input);
    float2 uv = UnityStereoTransformScreenSpaceTex(input.uv);

    #if SHADER_TARGET >= 45 && defined(PLATFORM_SUPPORT_GATHER)

        // Sample source colors
        half4 cr = GATHER_RED_TEXTURE2D_X(_MainTex, sampler_LinearClamp, uv);
        half4 cg = GATHER_GREEN_TEXTURE2D_X(_MainTex, sampler_LinearClamp, uv);
        half4 cb = GATHER_BLUE_TEXTURE2D_X(_MainTex, sampler_LinearClamp, uv);

        half3 c0 = half3(cr.x, cg.x, cb.x);
        half3 c1 = half3(cr.y, cg.y, cb.y);
        half3 c2 = half3(cr.z, cg.z, cb.z);
        half3 c3 = half3(cr.w, cg.w, cb.w);

        // Sample CoCs
        half4 cocs = GATHER_TEXTURE2D_X(_FullCoCTexture, sampler_LinearClamp, uv) * 2.0 - 1.0;
        half coc0 = cocs.x;
        half coc1 = cocs.y;
        half coc2 = cocs.z;
        half coc3 = cocs.w;

    #else

    float3 duv = _MainTex_TexelSize.xyx * float3(0.5, 0.5, -0.5);
    float2 uv0 = uv - duv.xy;
    float2 uv1 = uv - duv.zy;
    float2 uv2 = uv + duv.zy;
    float2 uv3 = uv + duv.xy;


    // Sample source colors
    half3 c0 = SAMPLE_TEXTURE2D_X(_MainTex, sampler_LinearClamp, uv0).xyz;
    half3 c1 = SAMPLE_TEXTURE2D_X(_MainTex, sampler_LinearClamp, uv1).xyz;
    half3 c2 = SAMPLE_TEXTURE2D_X(_MainTex, sampler_LinearClamp, uv2).xyz;
    half3 c3 = SAMPLE_TEXTURE2D_X(_MainTex, sampler_LinearClamp, uv3).xyz;

    // Sample CoCs
    half coc0 = SAMPLE_TEXTURE2D_X(_FullCoCTexture, sampler_LinearClamp, uv0).x * 2.0 - 1.0;
    half coc1 = SAMPLE_TEXTURE2D_X(_FullCoCTexture, sampler_LinearClamp, uv1).x * 2.0 - 1.0;
    half coc2 = SAMPLE_TEXTURE2D_X(_FullCoCTexture, sampler_LinearClamp, uv2).x * 2.0 - 1.0;
    half coc3 = SAMPLE_TEXTURE2D_X(_FullCoCTexture, sampler_LinearClamp, uv3).x * 2.0 - 1.0;

    #endif

    #if COC_LUMA_WEIGHTING

        // Apply CoC and luma weights to reduce bleeding and flickering
        half w0 = abs(coc0) / (Max3(c0.x, c0.y, c0.z) + 1.0);
        half w1 = abs(coc1) / (Max3(c1.x, c1.y, c1.z) + 1.0);
        half w2 = abs(coc2) / (Max3(c2.x, c2.y, c2.z) + 1.0);
        half w3 = abs(coc3) / (Max3(c3.x, c3.y, c3.z) + 1.0);

        // Weighted average of the color samples
        half3 avg = c0 * w0 + c1 * w1 + c2 * w2 + c3 * w3;
        avg /= max(w0 + w1 + w2 + w3, 1e-5);

    #else

    half3 avg = (c0 + c1 + c2 + c3) / 4.0;

    #endif

    //修改, 直接采样原图和_FullCoCTexture, 不模糊.
    float2 uv4 = uv;
    half3 c4 = SAMPLE_TEXTURE2D_X(_MainTex, sampler_LinearClamp, uv4).xyz;
    half coc4 = SAMPLE_TEXTURE2D_X(_FullCoCTexture, sampler_LinearClamp, uv4).x * 2.0 - 1.0;
    half3 avg =c4 * abs(coc4);
    //修改

    // Select the largest CoC value
    half cocMin = min(coc0, Min3(coc1, coc2, coc3));
    half cocMax = max(coc0, Max3(coc1, coc2, coc3));
    half coc = (-cocMin > cocMax ? cocMin : cocMax) * MaxRadius;

    // Premultiply CoC
    avg *= smoothstep(0, _MainTex_TexelSize.y * 2.0, abs(coc));

    #if defined(UNITY_COLORSPACE_GAMMA)
        avg = SRGBToLinear(avg);
    #endif

    return half4(avg, coc);
}
参考网页

02 定制记录

涉及文件:

  • 着色器: Packages/com.unity.render-pipelines.universal@14.0.8/Shaders/PostProcessing/BokehDepthOfField.shader
  • 面板(不涉及, 仅关联): Packages/com.unity.render-pipelines.universal@14.0.8/Runtime/Overrides/DepthOfField.cs Packages/com.unity.render-pipelines.universal@14.0.8/Editor/Overrides/DepthOfFieldEditor.cs
  • Pass: Packages/com.unity.render-pipelines.universal@14.0.8/Runtime/Passes/PostProcessPass.cs

完整代码

shader代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

 half4 FragPrefilterV2(Varyings input) : SV_Target
{
    UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX(input);
    float2 uv = UnityStereoTransformScreenSpaceTex(input.uv);
    float3 duv = _MainTex_TexelSize.xyx * float3(0.5, 0.5, -0.5);
    float2 uv0 = uv - duv.xy;
    float2 uv1 = uv - duv.zy;
    float2 uv2 = uv + duv.zy;
    float2 uv3 = uv + duv.xy;

    half3 c4 = SAMPLE_TEXTURE2D_X(_MainTex, sampler_LinearClamp, uv).xyz;

    half coc0 = SAMPLE_TEXTURE2D_X(_FullCoCTexture, sampler_LinearClamp, uv0).x * 2.0 - 1.0;
    half coc1 = SAMPLE_TEXTURE2D_X(_FullCoCTexture, sampler_LinearClamp, uv1).x * 2.0 - 1.0;
    half coc2 = SAMPLE_TEXTURE2D_X(_FullCoCTexture, sampler_LinearClamp, uv2).x * 2.0 - 1.0;
    half coc3 = SAMPLE_TEXTURE2D_X(_FullCoCTexture, sampler_LinearClamp, uv3).x * 2.0 - 1.0;

    half cocMin = min(coc0, Min3(coc1, coc2, coc3));
    half cocMax = max(coc0, Max3(coc1, coc2, coc3));
    half coc = (-cocMin > cocMax ? cocMin : cocMax) * MaxRadius;

    half coc4 = SAMPLE_TEXTURE2D_X(_FullCoCTexture, sampler_LinearClamp, uv).x * 2.0 - 1.0;

    half3 avg =c4 * abs(coc4);

    #if defined(UNITY_COLORSPACE_GAMMA)
        avg = SRGBToLinear(avg);
    #endif

    return half4(avg, coc);
}

...

Pass
{
    Name "Bokeh Depth Of Field PrefilterV2"

    HLSLPROGRAM
    #pragma vertex Vert
    #pragma fragment FragPrefilterV2
    #pragma target 3.0
    ENDHLSL
}

Pass代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84

void DoDepthOfField(Camera camera, CommandBuffer cmd, int source, int destination, Rect pixelRect)
{
    if (m_DepthOfField.mode.value == DepthOfFieldMode.Gaussian)
        DoGaussianDepthOfField(camera, cmd, source, destination, pixelRect);
    else if (m_DepthOfField.mode.value == DepthOfFieldMode.Bokeh)
        DoBokehDepthOfField(cmd, source, destination, pixelRect);
    //C10132023
    else if (m_DepthOfField.mode.value == DepthOfFieldMode.BokehVer2)
    {
        DoBokehDepthOfFieldV2(cmd, source, destination, pixelRect);
    }
    //C10132023
}

...

void DoBokehDepthOfFieldV2(CommandBuffer cmd, int source, int destination, Rect pixelRect)
{
    m_DepthOfField.nearClearPlane.value = URPUserData.NearClearPlane;
    m_DepthOfField.farClearPlane.value = URPUserData.FarClearPlane;
    m_DepthOfField.farBlurAttend.value = URPUserData.FarBlurAttend;
    m_DepthOfField.focalLength.value = URPUserData.FocalLength;
    m_DepthOfField.aperture.value = URPUserData.Aperture;

    var material = m_Materials.bokehDepthOfField;
    int wh = m_Descriptor.width / 2;
    int hh = m_Descriptor.height / 2;

    // "A Lens and Aperture Camera Model for Synthetic Image Generation" [Potmesil81]
    float F = m_DepthOfField.focalLength.value / 1000f;
    float A = m_DepthOfField.focalLength.value / m_DepthOfField.aperture.value;
    //C10132023
    // float P = m_DepthOfField.focusDistance.value;
    float P = m_DepthOfField.nearClearPlane.value / 100f;
    //C10132023
    float maxCoC = (A * F) / (P - F);
    float maxRadius = GetMaxBokehRadiusInPixels(m_Descriptor.height);
    float rcpAspect = 1f / (wh / (float)hh);
    //C10132023
    float N = m_DepthOfField.farClearPlane.value / 100f; //因为是厘米
    float farBlurAttend = m_DepthOfField.farBlurAttend.value;
    cmd.SetGlobalFloat(ShaderConstants._FarClearPlane, N);
    cmd.SetGlobalFloat(ShaderConstants._FarBlurAttend, farBlurAttend);
    //C10132023

    cmd.SetGlobalVector(ShaderConstants._CoCParams, new Vector4(P, maxCoC, maxRadius, rcpAspect));

    // Prepare the bokeh kernel constant buffer
    int hash = m_DepthOfField.GetHashCode();
    if (hash != m_BokehHash)
    {
        m_BokehHash = hash;
        PrepareBokehKernel();
    }

    cmd.SetGlobalVectorArray(ShaderConstants._BokehKernel, m_BokehKernel);

    // Temporary textures
    cmd.GetTemporaryRT(ShaderConstants._FullCoCTexture, GetStereoCompatibleDescriptor(m_Descriptor.width, m_Descriptor.height, GraphicsFormat.R8_UNorm), FilterMode.Bilinear);
    cmd.GetTemporaryRT(ShaderConstants._PingTexture, GetStereoCompatibleDescriptor(wh, hh, GraphicsFormat.R16G16B16A16_SFloat), FilterMode.Bilinear);
    cmd.GetTemporaryRT(ShaderConstants._PongTexture, GetStereoCompatibleDescriptor(wh, hh, GraphicsFormat.R16G16B16A16_SFloat), FilterMode.Bilinear);

    // Compute CoC
    cmd.Blit(source, ShaderConstants._FullCoCTexture, material, 5);
    cmd.SetGlobalTexture(ShaderConstants._FullCoCTexture, ShaderConstants._FullCoCTexture);

    // Downscale & prefilter color + coc
    cmd.Blit(source, ShaderConstants._PingTexture, material, 6);

    // Bokeh blur
    cmd.Blit(ShaderConstants._PingTexture, ShaderConstants._PongTexture, material, 2);

    // Post-filtering
    cmd.Blit(ShaderConstants._PongTexture, BlitDstDiscardContent(cmd, ShaderConstants._PingTexture), material, 3);

    // Composite
    cmd.SetGlobalTexture(ShaderConstants._DofTexture, ShaderConstants._PingTexture);
    cmd.Blit(source, BlitDstDiscardContent(cmd, destination), material, 4);

    // Cleanup
    cmd.ReleaseTemporaryRT(ShaderConstants._FullCoCTexture);
    cmd.ReleaseTemporaryRT(ShaderConstants._PingTexture);
    cmd.ReleaseTemporaryRT(ShaderConstants._PongTexture);
}
URP, 后处理
URP 后处理 DepthOfField
本文由作者按照 CC BY 4.0 进行授权
