逆向分析

00 前言

GPA截取出来的HLSL代码, 要注意, Unity的内置矩阵(类似unity_ObjectToWorld等)编译出来的代码, 实际上无法直接用于shader. 因为大概率hlslcc_mtxunity_ObjectToWorld与unity_ObjectToWorld互为转置矩阵.

原因是Unity在编译时将矩阵unity_ObjectToWorld通过转置换成hlslcc_mtxunity_ObjectToWorld


// o.positionWS = mul(unity_ObjectToWorld,v.vertex).xyz;
// gles3x编译出来是以下未注释代码, 但如果将下面未注释的代码复制粘贴到着色器中, 并将
// hlslcc_mtx4x4unity_ObjectToWorld 替换为 unity_ObjectToWorld, 实际上视觉效果等同于
// o.positionWS = mul(v.vertex,unity_ObjectToWorld).xyz;
o.positionWS = v.vertex.yyy * hlslcc_mtx4x4unity_ObjectToWorld[1].xyz;
o.positionWS = hlslcc_mtx4x4unity_ObjectToWorld[0].xyz * v.vertex.xxx + o.positionWS;
o.positionWS = hlslcc_mtx4x4unity_ObjectToWorld[2].xyz * v.vertex.zzz + o.positionWS;
o.positionWS = hlslcc_mtx4x4unity_ObjectToWorld[3].xyz * v.vertex.www + o.positionWS;

// 同样
// o.positionWS = mul(v.vertex,unity_ObjectToWorld).xyz;
// gles3x编译出来是以下未注释代码, 但如果将下面未注释的代码复制粘贴到着色器中, 并将
// hlslcc_mtx4x4unity_ObjectToWorld 替换为 unity_ObjectToWorld, 实际上视觉效果等同于
// o.positionWS = mul(unity_ObjectToWorld,v.vertex).xyz;
o.positionWS.x = dot(v.vertex, hlslcc_mtx4x4unity_ObjectToWorld[0]);
o.positionWS.y = dot(v.vertex, hlslcc_mtx4x4unity_ObjectToWorld[1]);
o.positionWS.z = dot(v.vertex, hlslcc_mtx4x4unity_ObjectToWorld[2]);


//Unity内部有一个优化正交和透视矩阵的函数在UnityInput.hlsl中
float4x4 OptimizeProjectionMatrix(float4x4 M)
{
    // Matrix format (x = non-constant value).
    // Orthographic Perspective  Combined(OR)
    // | x 0 0 x |  | x 0 x 0 |  | x 0 x x |
    // | 0 x 0 x |  | 0 x x 0 |  | 0 x x x |
    // | x x x x |  | x x x x |  | x x x x | <- oblique projection row
    // | 0 0 0 1 |  | 0 0 x 0 |  | 0 0 x x |
    // Notice that some values are always 0.
    // We can avoid loading and doing math with constants.
    M._21_41 = 0;
    M._12_42 = 0;
    return M;
}

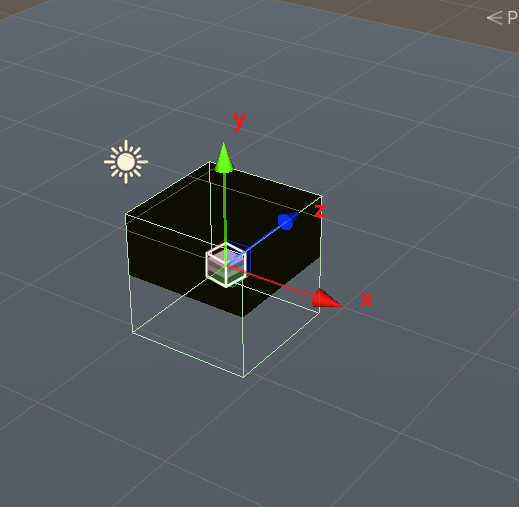

col = half4(unity_ObjectToWorld[0].w,unity_ObjectToWorld[1].w,unity_ObjectToWorld[2].w,1.0);

用对应的轴拖动, 会刚好变成对应轴的颜色.


//矩阵的数组取值是按照行进行取值的.
//unity是按照列存储矩阵, 即第一列是x的缩放旋转变化, 第二列是y的缩放旋转变化, 第三列是z的缩放旋转变化, 最后一列是
//xyz的位移
|1,0,0,x| |00,01,02,03|
|0,1,0,y| |10,11,12,12|
|0,0,1,z| |20,21,22,23|
|0,0,0,1| |30,31,32,33|
//这样来存储unity_ObjectToWorld矩阵的
//但是, 矩阵乘法如果要写成类似
o.positionWS = v.vertex.yyy * hlslcc_mtx4x4unity_ObjectToWorld[1].xyz;
o.positionWS = hlslcc_mtx4x4unity_ObjectToWorld[0].xyz * v.vertex.xxx + o.positionWS;
o.positionWS = hlslcc_mtx4x4unity_ObjectToWorld[2].xyz * v.vertex.zzz + o.positionWS;
o.positionWS = hlslcc_mtx4x4unity_ObjectToWorld[3].xyz * v.vertex.www + o.positionWS;
//的形式
//那么hlslcc_mtx4x4unity_ObjectToWorld这个矩阵, 就必须按照行来存储. 而正常的矩阵乘法, 是按照列相乘的方式进行
//的.比如
|-1, 0|*|2|=2*|-1|+2*|0|=|-2|
| 0, 1| |2|	  | 0|   |1| | 2|
//换句话说, 反编译得到的, 或者unity编译后的形似hlslcc_mtx4x4unity_ObjectToWorld这个矩阵, 是按照行来存储的.
//所以不能直接调用Unity的unity_ObjectToWorld这个列存储矩阵来代替hlslcc_mtx4x4unity_ObjectToWorld

直接定义矩阵可以看到编译出的代码是进行的dot运算


half4 col = tex2D(_MainTex, i.uv);
OTW = (float4x4)0;
OTW[0] = float4(1, 0, 0, -0.1);
OTW[1] = float4(0, 1, 0, -0.7);
OTW[2] = float4(0, 0, 1, -0.5);
OTW[3] = float4(1, 1, 1, 1);

half4 output = mul(OTW, col);//这一行等同于下面四行
output.x = dot(float4(1, 0, 0, -0.1), col);
output.y = dot(float4(0, 1, 0, -0.7), col);
output.z = dot(float4(0, 0, 1, -0.5), col);
output.w = dot(float4(1, 1, 1, 1), col);

而使用unity内置矩阵则可以看到

half4 col = tex2D(_MainTex, i.uv);
half4 output = mul(unity_ObjectToWorld, col);

output = col.yyyy * hlslcc_mtx4x4unity_ObjectToWorld[1];
output = hlslcc_mtx4x4unity_ObjectToWorld[0] * col.xxxx + output;
output = hlslcc_mtx4x4unity_ObjectToWorld[2] * col.zzzz + output;
output = hlslcc_mtx4x4unity_ObjectToWorld[3] * col.wwww + output;

mul - Win32 apps | Microsoft Learn

目前大部分的截帧软件, 即便是手机取得了Root权限, 并且设置全局为Debuggable, 仍旧无法截帧.

01 处理方法

内置矩阵是列排列, 我们自定义的矩阵也使用列排列(即用列来存储每个向量的变化). 而编译后的内置矩阵会变为行排列. 正常正向写shader无需在意, 但逆向时, 在进行内置矩阵的运算时, 在将hlslcc_mtx4x4unity_ObjectToWorld替换为unity_ObjectToWorld的同时, 也要将运算进行修改(交换mul中的位置, 或者使用unity_ObjectToWorld的转置矩阵来替换hlslcc_mtx4x4unity_ObjectToWorld).

注: 反编译后为_hlslcc_mtxUnity_ObjectToWorld, unity直接编译则为hlslcc_mtx4x4unity_ObjectToWorld

#define _hlslcc_mtxUnity_ObjectToWorld transpose(unity_ObjectToWorld)
#define hlslcc_mtxUnity_ObjectToWorld transpose(unity_ObjectToWorld)

02 常用函数及敏感数值对应

lerp——(w*(b-a)+a)


lerp(a,b,w)
{
	return a+w*(b-a);
}

PerceptualRoughness——(1.7,0.7,6)

//mipCount一般为6
//perceptualRoughness就是直接的贴图采样结果
real PerceptualRoughnessToMipmapLevel(real perceptualRoughness, uint mipMapCount)
{
	perceptualRoughness = perceptualRoughness*(1.7-0.7*perceptualRoughness);
	return perceptualRoughness*mipCount;
}

03 CSV转Mesh

注意, GPA截帧出来的模型, 其三角面的构建方向与Unity相反. 在Unity中使用以下函数进行修正


/// <summary>
    /// 翻转mesh的三角片元构建方式
    /// </summary>
    /// <param name="mesh"></param>
    private void FlipTriangles(Mesh mesh)
    {
        // triangles数量对应subMesh的index数量
        var trianglesHash = mesh.triangles;
        int offset = 0;
        for (int i = 0; i < mesh.subMeshCount; i++)
        {
            var trianglesSubHash = new ArraySegment<int>(trianglesHash, offset, mesh.GetSubMesh(i).indexCount).ToArray();
            offset += mesh.GetSubMesh(i).indexCount;
            for (int j = 0; j < mesh.GetSubMesh(i).indexCount; j += 3)
            {
                (trianglesSubHash[j], trianglesSubHash[j + 2]) = (trianglesSubHash[j + 2], trianglesSubHash[j]);
            }
            mesh.SetTriangles(trianglesSubHash, i);
        }
    }
