定制ShaderGraph(二)---添加自定义属性

发表于 更新于
作者 Jauved
19 分钟阅读
定制ShaderGraph(二)---添加自定义属性

定制ShaderGraph(二)—添加自定义属性

00 前置知识

  • 首先, 自定义的属性应该有一个自己的Foldout来折叠起来
  • 然后, 自定义的属性应该可以点击后增加输入节点

01 实施

将自定义属性写到面板上

  • 在UniversalVehiclePaintSubTarget中添加代码
    1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105

    sealed class UniversalVehiclePaintSubTarget : UniversalSubTarget
{
	...

	[SerializeField] bool m_BakedGI = false;	// 面板bool值, 为true代表激活输入节点, false则取消激活输入节点

    [SerializeField] bool m_ExternalFoldoutOn = false; // Foldout折叠用的bool值

	...

    // 对应的属性声明
    public bool bakedGI
    {
        get => m_BakedGI;
        set => m_BakedGI = value;
    }

    public bool externalFoldoutOn
    {
        get => m_ExternalFoldoutOn;
        set => m_ExternalFoldoutOn = value;
    }

    ...

    // ShaderGraph输出框的参数口, 及出现条件
    public override void GetActiveBlocks(ref TargetActiveBlockContext context)
    {
        ...
        // 当面板上的bakedGI为true的时候, 这个属性就出现, 要注意, 此时为false的时候, 只会变灰, 而不会去掉
        // 为了避免污染原来的类, 所以新建了一个ExternalBlockFields的类用来存储自定义的节点
        context.AddBlock(ExternalBlockFields.SurfaceDescription.BakedGI, bakedGI);
    }

    ...

    // UI绘制
    public override void GetPropertiesGUI(ref TargetPropertyGUIContext context, Action onChange,
        Action<String> registerUndo)
    {
        ...
        // 自定义 External Control 块, 用函数嵌入, 最小的破坏原有结构
        DrawExternalControlGUI(ref context, onChange, registerUndo);
	}

     private void DrawExternalControlGUI(ref TargetPropertyGUIContext context, Action onChange, Action<string> registerUndo)
    {
        // 折叠面板
        var external = new Foldout { value = externalFoldoutOn };
        context.AddFoldout(
            "External Control",
            external,
            indentLevel: 0, 	// 缩进定义i
            labelColor: CustomStyles.FoldoutColor,	// 颜色在外部类CustomStyles定义
            callback: evt => {
            externalFoldoutOn = evt.newValue;
            onChange();
        });

        // 折叠打开时展示 Baked GI 开关
        if (externalFoldoutOn)
        {
            context.AddProperty(
                "Baked GI",
                1,	// 折叠内部的缩进通常要+1
                new Toggle { value = bakedGI },
                evt =>
                {
                    if (bakedGI == evt.newValue) return;
                    registerUndo("Change Baked GI");
                    bakedGI = evt.newValue;
                    onChange();
                });
        }
    }

    // ─── 样式与常量 ─────────────────────────────────
    static class CustomStyles
    {
        public static readonly Color FoldoutColor = new Color(0.3294f, 0.7255f, 0.8196f);
        public const string ExternalFoldoutName = "ExternalControlFoldout";
    }
}

/// <summary>
/// 用于声明自定义的ShaderGraph输出的属性节点 <br/>
/// Unity源文件在com.unity.shadergraph@12.1.10/Editor/Generation/TargetResources/BlockFields.cs
/// </summary>
///
static class ExternalBlockFields
{
    /// <summary>
    /// 自定义的表面参数
    /// </summary>
    [GenerateBlocks("External")]	// "External"为在ShaderGraph里面手动添加时的菜单路径
    public struct SurfaceDescription
    {
        public static string name = "SurfaceDescription";
        // 此时的ColorControl是为了确定默认初始值, 后面的True表示是HDR颜色, 其中, 第二个参"BakedGI",
        // 就是可以通过SurfaceDescription.BakedGI在hlsl中访问到的值
        // 千万千万注意, 这个值要保证全项目唯一, 因为实际文件构建的时候就是靠这个值来确定Block的.
        public static BlockFieldDescriptor BakedGI = new(name, "BakedGI", "Baked GI",
            "SURFACEDESCRIPTION_BAKEDGI", new ColorControl(new Color(1,1,1,0),true), ShaderStage.Fragment);
    }
}
  • 如果要让自定义的字段能够自动”出现”和”去掉”, 那么就需要在LitBlockMasks类中添加BlockFieldDescriptor[], 当然, 我们为了最小侵入, 新建一个类ExternalBlockMasks, 然后声明一个BlockFieldDescriptor[], 将ExternalBlockFields.SurfaceDescription.BakedGI加入. 同时, 要在构建的SubShader的时候, 调用这个Block, 此时, 才可以触发重排, 也就是视觉上的”出现”和”去掉”.
    1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

    static class LitBlockMasks
{
	...
}

 static class ExternalBlockMasks
 {
     ...
     public static readonly BlockFieldDescriptor[] FragmentVehiclePaint = new BlockFieldDescriptor[]
    {
        BlockFields.SurfaceDescription.BaseColor,
        BlockFields.SurfaceDescription.NormalOS,
        BlockFields.SurfaceDescription.NormalTS,
        BlockFields.SurfaceDescription.NormalWS,
        BlockFields.SurfaceDescription.Emission,
        BlockFields.SurfaceDescription.Metallic,
        BlockFields.SurfaceDescription.Specular,
        BlockFields.SurfaceDescription.Smoothness,
        BlockFields.SurfaceDescription.Occlusion,
        BlockFields.SurfaceDescription.Alpha,
        BlockFields.SurfaceDescription.AlphaClipThreshold,
        BlockFields.SurfaceDescription.CoatMask,
        BlockFields.SurfaceDescription.CoatSmoothness,

        #region CustomAddCode

        ExternalBlockFields.SurfaceDescription.BakedGI

        #endregion
    };
 }

// 在创建SubShader的时候, 将ExternalBlockMasks.FragmentVehiclePaint作为参数传入, 注意, 与LitGLESSubShader对应的
// LitComputeDotsSubShader中也有类似的代码, 如果你要考虑写Dot适配的, 那么在LitComputeDotsSubShader函数中也要进行对应
// 的修改
public static SubShaderDescriptor LitGLESSubShader(UniversalTarget target, WorkflowMode workflowMode,
            string renderType, string renderQueue, bool complexLit)
{
    ...
    if (complexLit)
        result.passes.Add(ExternalPasses.ForwardOnly(target, workflowMode, complexLit, CoreBlockMasks.Vertex,
            // CustomAddCode
            // ExternalBlockMasks.FragmentComplexLit, CorePragmas.Forward));
            ExternalBlockMasks.FragmentVehiclePaint, CorePragmas.Forward));
	else
    	result.passes.Add(ExternalPasses.Forward(target, workflowMode));
}

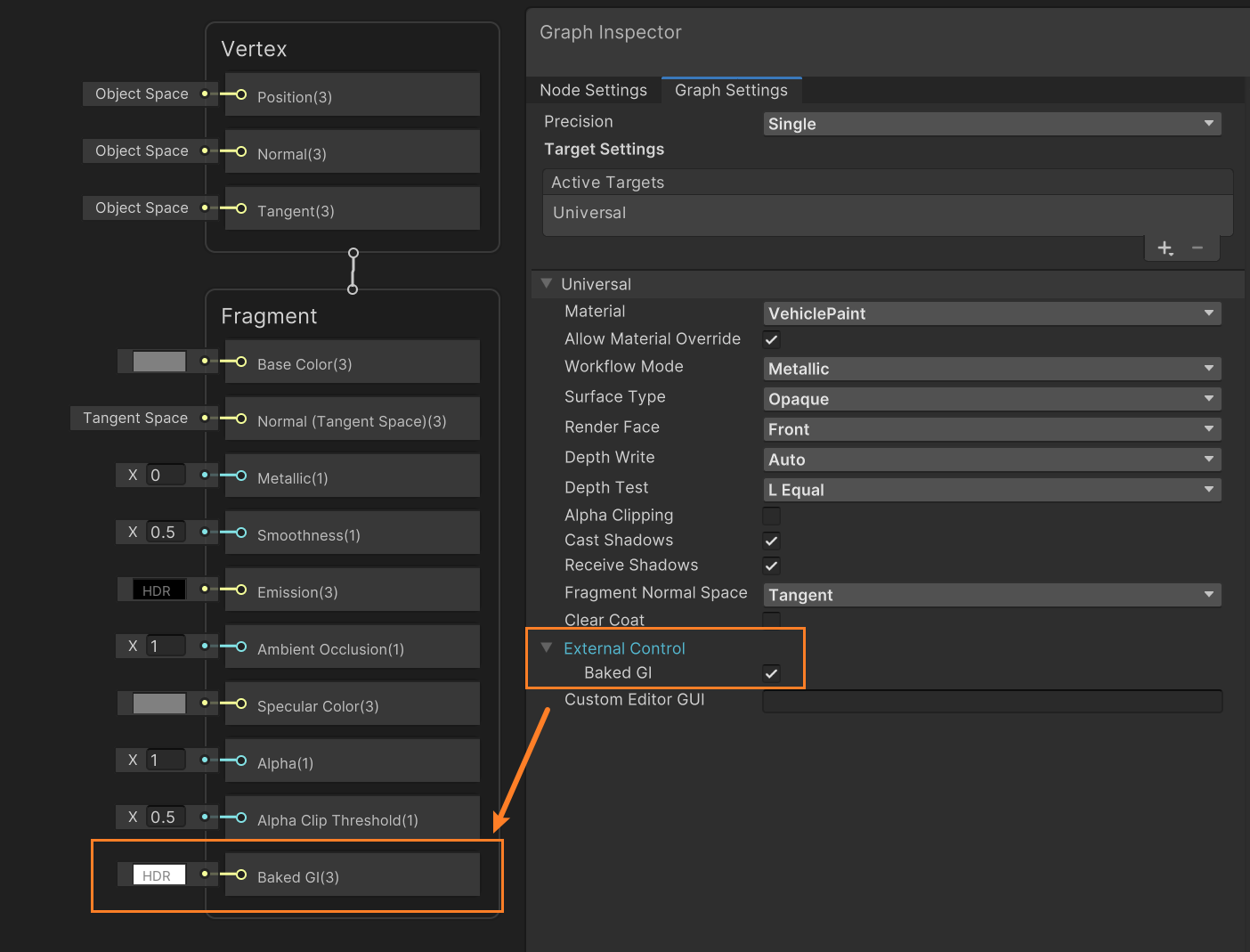

  • 至此, 我们完成了面板和输入节点的自定义 image-20250804164306677

应用自定义属性到最终着色器中

  • 首先, 一些前置准备工作, 在我们拷贝出来的UniversalVehiclePaintSubTarget.cs文件中的Setup()函数中

    注释掉context.AddSubShader(PostProcessSubShader(SubShader.LitComputeDotsSubShader(target, workflowMode, // target.renderType, target.renderQueue, complexLit)));这一行, 原因是因为目前我对于Dot不太了解, 并且前期并不会对Dot进行适配

    1
2
3
4
5
6
7

    // Process SubShaders
// Modify by yumiao 由于没有做Dot相关的适配, 所以暂时不加入Dot的相关SubShader
// context.AddSubShader(PostProcessSubShader(SubShader.LitComputeDotsSubShader(target, workflowMode,
//     target.renderType, target.renderQueue, complexLit)));
// End Add
context.AddSubShader(PostProcessSubShader(SubShader.LitGLESSubShader(target, workflowMode,
    target.renderType, target.renderQueue, complexLit)));

    注释的部分对应的调用代码是在分离出的SubShader.cs中

    函数public static SubShaderDescriptor LitComputeDotsSubShader(UniversalTarget target, WorkflowMode workflowMode,string renderType, string renderQueue, bool complexLit)

    如果, 你想兼容Dot相关的SubShader, 那么可以不注释, 但需要将函数中的这部分代码换成你自定义的代码

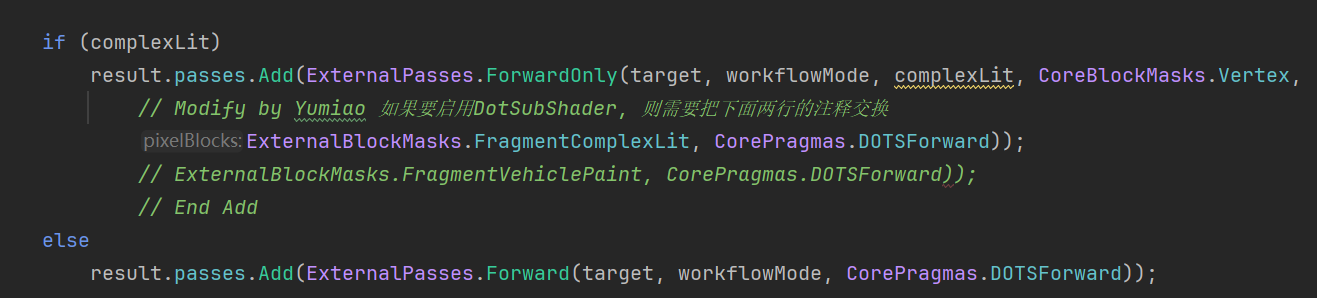

    image-20250819134247399

02 代码生成

探寻是如何生成代码的

  • Library/PackageCache/com.unity.shadergraph@12.1.10/Editor/Importers/ShaderGraphImporterEditor.cs

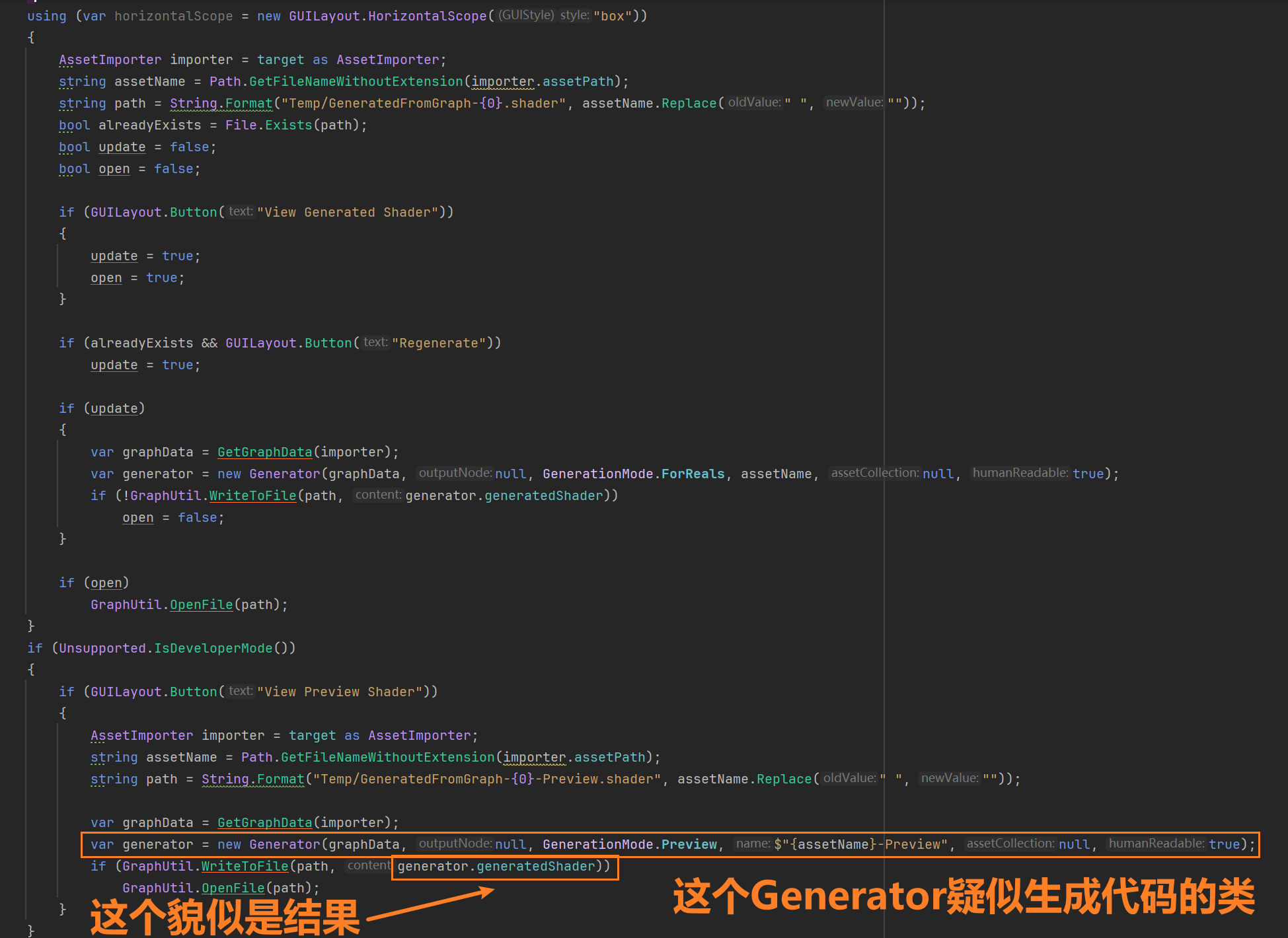

    • 文件中 image-20250804175706409

Library/PackageCache/com.unity.shadergraph@12.1.10/Editor/Generation/Processors/Generator.cs

  • 文件中有个BuildShader()函数, 貌似是总调用
    1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119

    void BuildShader()
{
    var activeNodeList = Pool.ListPool<AbstractMaterialNode>.Get();
    bool ignoreActiveState = (m_Mode == GenerationMode.Preview);  // for previews, we ignore node active state
    if (m_OutputNode == null)
    {
        foreach (var block in m_ActiveBlocks)
        {
            // IsActive is equal to if any active implementation has set active blocks
            // This avoids another call to SetActiveBlocks on each TargetImplementation
            if (!block.isActive)
                continue;

            NodeUtils.DepthFirstCollectNodesFromNode(activeNodeList, block, NodeUtils.IncludeSelf.Include, ignoreActiveState: ignoreActiveState);
        }
    }
    else
    {
        NodeUtils.DepthFirstCollectNodesFromNode(activeNodeList, m_OutputNode, ignoreActiveState: ignoreActiveState);
    }

    var shaderProperties = new PropertyCollector();
    var shaderKeywords = new KeywordCollector();
    m_GraphData.CollectShaderProperties(shaderProperties, m_Mode);
    m_GraphData.CollectShaderKeywords(shaderKeywords, m_Mode);

    var graphInputOrderData = new List<GraphInputData>();
    foreach (var cat in m_GraphData.categories)
    {
        foreach (var input in cat.Children)
        {
            graphInputOrderData.Add(new GraphInputData()
            {
                isKeyword = input is ShaderKeyword,
                referenceName = input.referenceName
            });
        }
    }
    string path = AssetDatabase.GUIDToAssetPath(m_GraphData.assetGuid);

    // Send an action about our current variant usage. This will either add or clear a warning if it exists
    var action = new ShaderVariantLimitAction(shaderKeywords.permutations.Count, ShaderGraphPreferences.variantLimit);
    m_GraphData.owner?.graphDataStore?.Dispatch(action);

    if (shaderKeywords.permutations.Count > ShaderGraphPreferences.variantLimit)
    {
        string graphName = "";
        if (m_GraphData.owner != null)
        {
            if (path != null)
            {
                graphName = Path.GetFileNameWithoutExtension(path);
            }
        }
        Debug.LogError($"Error in Shader Graph {graphName}:{ShaderKeyword.kVariantLimitWarning}");

        m_ConfiguredTextures = shaderProperties.GetConfiguredTextures();
        m_Builder.AppendLines(ShaderGraphImporter.k_ErrorShader.Replace("Hidden/GraphErrorShader2", graphName));
        // Don't continue building the shader, we've already built an error shader.
        return;
    }

    foreach (var activeNode in activeNodeList.OfType<AbstractMaterialNode>())
    {
        activeNode.SetUsedByGenerator();
        activeNode.CollectShaderProperties(shaderProperties, m_Mode);
    }

    // Collect excess shader properties from the TargetImplementation
    foreach (var target in m_Targets)
    {
        // TODO: Setup is required to ensure all Targets are initialized
        // TODO: Find a way to only require this once
        TargetSetupContext context = new TargetSetupContext();
        target.Setup(ref context);

        target.CollectShaderProperties(shaderProperties, m_Mode);
    }

    // set the property collector to read only
    // (to ensure no rogue target or pass starts adding more properties later..)
    shaderProperties.SetReadOnly();

    m_Builder.AppendLine(@"Shader ""{0}""", m_Name);
    using (m_Builder.BlockScope())
    {
        GenerationUtils.GeneratePropertiesBlock(m_Builder, shaderProperties, shaderKeywords, m_Mode, graphInputOrderData);
        for (int i = 0; i < m_Targets.Length; i++)
        {
            TargetSetupContext context = new TargetSetupContext(m_assetCollection);

            // Instead of setup target, we can also just do get context
            m_Targets[i].Setup(ref context);

            var subShaderProperties = GetSubShaderPropertiesForTarget(m_Targets[i], m_GraphData, m_Mode, m_OutputNode, m_TemporaryBlocks);
            foreach (var subShader in context.subShaders)
            {
                GenerateSubShader(i, subShader, subShaderProperties);
            }

            var customEditor = context.defaultShaderGUI;
            if (customEditor != null && m_Targets[i].WorksWithSRP(GraphicsSettings.currentRenderPipeline))
            {
                m_Builder.AppendLine("CustomEditor \"" + customEditor + "\"");
            }

            foreach (var rpCustomEditor in context.customEditorForRenderPipelines)
            {
                m_Builder.AppendLine($"CustomEditorForRenderPipeline \"{rpCustomEditor.shaderGUI}\" \"{rpCustomEditor.renderPipelineAssetType}\"");
            }

            m_Builder.AppendLine("CustomEditor \"" + typeof(GenericShaderGraphMaterialGUI).FullName + "\"");
        }

        m_Builder.AppendLine(@"FallBack ""Hidden/Shader Graph/FallbackError""");
    }

    m_ConfiguredTextures = shaderProperties.GetConfiguredTextures();
}

  • 其中的关键数据结构是GraphData : JsonObject

    • 路径是Library/PackageCache/com.unity.shadergraph@12.1.10/Editor/Data/Graphs/GraphData.cs

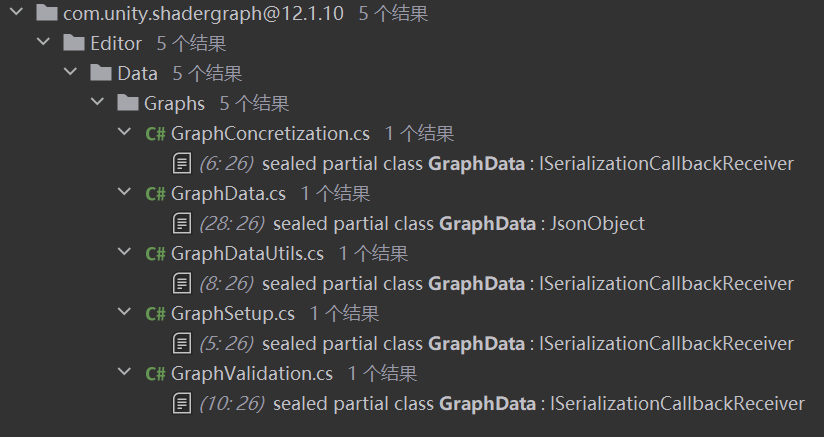

    • 值得注意的是, 这是个partial class, 由五个部分组成 image-20250804180559252
  • 由于我们不关心节点部分的代码, 实际上模板部分的代码是
    1
2
3
4
5
6
7
8

     // Process Template
Profiler.BeginSample("ProcessTemplate");
var templatePreprocessor = new ShaderSpliceUtil.TemplatePreprocessor(activeFields, spliceCommands,
    isDebug, sharedTemplateDirectories, m_assetCollection, m_humanReadable);
templatePreprocessor.ProcessTemplateFile(passTemplatePath);
m_Builder.Concat(templatePreprocessor.GetShaderCode());

Profiler.EndSample();

Library/PackageCache/com.unity.shadergraph@12.1.10/Editor/Generation/Processors/ShaderSpliceUtil.cs

  • 通过templatePreprocessor.GetShaderCode()这个方法, 我们找到了ShaderSpliceUtil.cs
    1
2
3
4

    public ShaderStringBuilder GetShaderCode()
{
    return result;
}
  • 其中result
    1
2
3
4
5
6
7
8
9
10

    public TemplatePreprocessor(ActiveFields activeFields, Dictionary<string, string> namedFragments, bool isDebug, string[] templatePaths, AssetCollection assetCollection, bool humanReadable, ShaderStringBuilder outShaderCodeResult = null)
{
    this.activeFields = activeFields;
    this.namedFragments = namedFragments;
    this.isDebug = isDebug;
    this.templatePaths = templatePaths;
    this.assetCollection = assetCollection;
    this.result = outShaderCodeResult ?? new ShaderStringBuilder(humanReadable: humanReadable);
    includedFiles = new HashSet<string>();
}

  • ShaderStringBuilder这个类看起来就很像我们要找的目标了 路径: Library/PackageCache/com.unity.shadergraph@12.1.10/Editor/Generation/Processors/ShaderStringBuilder.cs

    1
2
3
4
5
6
7
8
9

    public ShaderStringBuilder(int indentationLevel = 0, int stringBuilderSize = 8192, bool humanReadable = false)
{
    IncreaseIndent(indentationLevel);
    m_StringBuilder = new StringBuilder(stringBuilderSize);
    m_ScopeStack = new Stack<ScopeType>();
    m_Mappings = new List<ShaderStringMapping>();
    m_CurrentMapping = new ShaderStringMapping();
    m_HumanReadable = humanReadable;
}
  • 回到Generator.cs
    1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

    // Render State
Profiler.BeginSample("RenderState");
using (var renderStateBuilder = new ShaderStringBuilder(humanReadable: m_humanReadable))
{
    // Render states need to be separated by RenderState.Type
    // The first passing ConditionalRenderState of each type is inserted
    foreach (RenderStateType type in Enum.GetValues(typeof(RenderStateType)))
    {
        var renderStates = pass.renderStates?.Where(x => x.descriptor.type == type);
        if (renderStates != null)
        {
            foreach (RenderStateCollection.Item renderState in renderStates)
            {
                if (renderState.TestActive(activeFields))
                {
                    // 这一行应该就是把代码加入
                    renderStateBuilder.AppendLine(renderState.value);

                    // Cull is the only render state type that causes a compilation error
                    // when there are multiple Cull directive with different values in a pass.
                    if (type == RenderStateType.Cull)
                        break;
                }
            }
        }
    }

    // 这一行是把对应的部分换成加入后的代码
    string command = GenerationUtils.GetSpliceCommand(renderStateBuilder.ToCodeBlock(), "RenderState");
    // 这一行应该是应用
    spliceCommands.Add("RenderState", command);
}
Profiler.EndSample();

    要替换的模板路径是: Library/PackageCache/com.unity.render-pipelines.universal@12.1.10/Editor/ShaderGraph/Templates/ShaderPass.template

    1
2
3
4
5
6
7
8
9

    // 这三个函数应该就是生成SubShader

// 此函数被BuildShader调用, 又调用了GenerateShaderPass
void GenerateSubShader(int targetIndex, SubShaderDescriptor descriptor, PropertyCollector subShaderProperties)

// 此函数被BuildShader调用
static PropertyCollector GetSubShaderPropertiesForTarget(Target target, GraphData graph, GenerationMode generationMode, AbstractMaterialNode outputNode, List<BlockNode> outTemporaryBlockNodes)

void GenerateShaderPass(int targetIndex, PassDescriptor pass, ActiveFields activeFields, List<BlockFieldDescriptor> currentBlockDescriptors, PropertyCollector subShaderProperties)

    • GenerateSubShaderTags()函数用来生成SubShader的Tags 路径: Library/PackageCache/com.unity.shadergraph@12.1.10/Editor/Generation/Processors/GenerationUtils.cs

      1

      internal static void GenerateSubShaderTags(Target target, SubShaderDescriptor descriptor, ShaderStringBuilder builder)

    • Pass的模板在Library/PackageCache/com.unity.shadergraph@12.1.10/Editor/Generation/Templates/PassMesh.template

关于PackedVarings的来历

  • 首先, 在Library/PackageCache/com.unity.shadergraph@12.1.10/Editor/Generation/Processors/GenerationUtils.cs中
    1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74

    internal static void GeneratePackedStruct(StructDescriptor shaderStruct, ActiveFields activeFields, out StructDescriptor packStruct)
{
    packStruct = new StructDescriptor()
    {
        // 这里提到了将"Packed"与"shaderStruct.name", 结合起来作为Struct的名字
        name = "Packed" + shaderStruct.name,
        packFields = true,
        fields = new FieldDescriptor[] { }
    };
    List<FieldDescriptor> packedSubscripts = new List<FieldDescriptor>();
    List<FieldDescriptor> postUnpackedSubscripts = new List<FieldDescriptor>();
    List<int> packedCounts = new List<int>();
    foreach (FieldDescriptor subscript in shaderStruct.fields)
    {
        var fieldIsActive = false;
        var keywordIfDefs = string.Empty;

        if (activeFields.permutationCount > 0)
        {
            //find all active fields per permutation
            var instances = activeFields.allPermutations.instances
                .Where(i => IsFieldActive(subscript, i, subscript.subscriptOptions.HasFlag(StructFieldOptions.Optional))).ToList();
            fieldIsActive = instances.Count > 0;
            if (fieldIsActive)
                keywordIfDefs = KeywordUtil.GetKeywordPermutationSetConditional(instances.Select(i => i.permutationIndex).ToList());
        }
        else
            fieldIsActive = IsFieldActive(subscript, activeFields.baseInstance, subscript.subscriptOptions.HasFlag(StructFieldOptions.Optional));
        //else just find active fields

        if (fieldIsActive)
        {
            // special case, "UNITY_STEREO_INSTANCING_ENABLED" fields must be packed at the end of the struct because they are system generated semantics
            //
            if (subscript.HasPreprocessor() && (subscript.preprocessor.Contains("INSTANCING")))
                postUnpackedSubscripts.Add(subscript);
            // special case, "SHADER_STAGE_FRAGMENT" fields must be packed at the end of the struct,
            // otherwise the vertex output struct will have different semantic ordering than the fragment input struct.
            //
            else if (subscript.HasPreprocessor() && (subscript.preprocessor.Contains("SHADER_STAGE_FRAGMENT")))
                postUnpackedSubscripts.Add(subscript);
            else if (subscript.HasSemantic() || subscript.vectorCount == 0)
                packedSubscripts.Add(subscript);
            else
            {
                // pack float field
                int vectorCount = subscript.vectorCount;
                // super simple packing: use the first interpolator that has room for the whole value
                int interpIndex = packedCounts.FindIndex(x => (x + vectorCount <= 4));
                int firstChannel;
                if (interpIndex < 0 || subscript.HasPreprocessor())
                {
                    // allocate a new interpolator
                    interpIndex = packedCounts.Count;
                    firstChannel = 0;
                    packedCounts.Add(vectorCount);
                }
                else
                {
                    // pack into existing interpolator
                    firstChannel = packedCounts[interpIndex];
                    packedCounts[interpIndex] += vectorCount;
                }
            }
        }
    }
    for (int i = 0; i < packedCounts.Count(); ++i)
    {
        // todo: ensure this packing adjustment doesn't waste interpolators when many preprocessors are in use.
        var packedSubscript = new FieldDescriptor(packStruct.name, "interp" + i, "", "float" + packedCounts[i], "INTERP" + i, "", StructFieldOptions.Static);
        packedSubscripts.Add(packedSubscript);
    }
    packStruct.fields = packedSubscripts.Concat(postUnpackedSubscripts).ToArray();
}
  • 然后, 在Library/PackageCache/com.unity.render-pipelines.universal@12.1.10/Editor/ShaderGraph/UniversalStructs.cs中又有, 其中name为Varings, 所以, 合在一起就是PackedVarings
    1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

    static class UniversalStructs
{
    public static StructDescriptor Varyings = new StructDescriptor()
    {
        name = "Varyings",
        packFields = true,
        populateWithCustomInterpolators = true,
        fields = new FieldDescriptor[]
        {
            StructFields.Varyings.positionCS,
            StructFields.Varyings.positionWS,
            StructFields.Varyings.normalWS,
            StructFields.Varyings.tangentWS,
            StructFields.Varyings.texCoord0,
            StructFields.Varyings.texCoord1,
            StructFields.Varyings.texCoord2,
            StructFields.Varyings.texCoord3,
            StructFields.Varyings.color,
            StructFields.Varyings.viewDirectionWS,
            StructFields.Varyings.screenPosition,
            UniversalStructFields.Varyings.staticLightmapUV,
            UniversalStructFields.Varyings.dynamicLightmapUV,
            UniversalStructFields.Varyings.sh,
            UniversalStructFields.Varyings.fogFactorAndVertexLight,
            UniversalStructFields.Varyings.shadowCoord,
            StructFields.Varyings.instanceID,
            UniversalStructFields.Varyings.stereoTargetEyeIndexAsBlendIdx0,
            UniversalStructFields.Varyings.stereoTargetEyeIndexAsRTArrayIdx,
            StructFields.Varyings.cullFace,
        }
    };
}

关于SurfaceDescription的来历

目前能查到的是Library/PackageCache/com.unity.render-pipelines.universal@12.1.10/Editor/ShaderGraph/Includes/Varyings.hlsl文件中的生成函数

1
2
3
4
5
6
7
8
9
10
11
12
13

SurfaceDescription BuildSurfaceDescription(Varyings varyings)
{
    SurfaceDescriptionInputs surfaceDescriptionInputs = BuildSurfaceDescriptionInputs(varyings);
#if defined(HAVE_VFX_MODIFICATION)
    GraphProperties properties;
    ZERO_INITIALIZE(GraphProperties, properties);
    GetElementPixelProperties(surfaceDescriptionInputs, properties);
    SurfaceDescription surfaceDescription = SurfaceDescriptionFunction(surfaceDescriptionInputs, properties);
#else
    SurfaceDescription surfaceDescription = SurfaceDescriptionFunction(surfaceDescriptionInputs);
#endif
    return surfaceDescription;
}

然后在文件Library/PackageCache/com.unity.shadergraph@12.1.10/Editor/Generation/Processors/Generator.cs中

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

// Setup
string pixelGraphInputName = "SurfaceDescriptionInputs";
string pixelGraphOutputName = "SurfaceDescription";
string pixelGraphFunctionName = "SurfaceDescriptionFunction";
var pixelGraphOutputBuilder = new ShaderStringBuilder(humanReadable: m_humanReadable);
var pixelGraphFunctionBuilder = new ShaderStringBuilder(humanReadable: m_humanReadable);

// Build pixel graph outputs
// Add struct fields to active fields
GenerationUtils.GenerateSurfaceDescriptionStruct(pixelGraphOutputBuilder, pixelSlots, pixelGraphOutputName, activeFields.baseInstance, m_OutputNode is SubGraphOutputNode, pass.virtualTextureFeedback);

// Build pixel graph functions from ShaderPass pixel port mask
GenerationUtils.GenerateSurfaceDescriptionFunction(
    pixelNodes,
    pixelNodePermutations,
    m_OutputNode,
    m_GraphData,
    pixelGraphFunctionBuilder,
    functionRegistry,
    propertyCollector,
    keywordCollector,
    m_Mode,
    pixelGraphFunctionName,
    pixelGraphOutputName,
    null,
    pixelSlots,
    pixelGraphInputName,
    pass.virtualTextureFeedback);
  • 生成代码时, 大概是input.shaderOutputName
    1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

    static void GenerateSurfaceDescriptionRemap(
            GraphData graph,
            AbstractMaterialNode rootNode,
            IEnumerable<MaterialSlot> slots,
            ShaderStringBuilder surfaceDescriptionFunction,
            GenerationMode mode)
{
    if (rootNode == null)
    {
        foreach (var input in slots)
        {
            if (input != null)
            {
                var node = input.owner;
                var foundEdges = graph.GetEdges(input.slotReference).ToArray();
                // 这里的shaderOutputName
                var hlslName = NodeUtils.GetHLSLSafeName(input.shaderOutputName);
                if (foundEdges.Any())
                    surfaceDescriptionFunction.AppendLine($"surface.{hlslName} = {node.GetSlotValue(input.id, mode, node.concretePrecision)};");
                else
                    surfaceDescriptionFunction.AppendLine($"surface.{hlslName} = {input.GetDefaultValue(mode, node.concretePrecision)};");
            }
        }
    }
  • 对应的是声明面板时的第二个参, 即”BakedGI”
    1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

    /// <summary>
/// 用于声明自定义的ShaderGraph输出的属性节点 <br/>
/// Unity源文件在com.unity.shadergraph@12.1.10/Editor/Generation/TargetResources/BlockFields.cs
/// </summary>
///
static class ExternalBlockFields
{
    /// <summary>
    /// 自定义的表面参数
    /// </summary>
    [GenerateBlocks("External")]	// "External"为在ShaderGraph里面手动添加时的菜单路径
    public struct SurfaceDescription
    {
        public static string name = "SurfaceDescription";
        // 此时的ColorControl是为了确定默认初始值, 后面的True表示是HDR颜色, 第二个参是hlsl中使用的名称, 与name
        // 合并起来就是通过SurfaceDescription.BakedGI来调用
        public static BlockFieldDescriptor BakedGI = new(name, "BakedGI", "Baked GI",
            "SURFACEDESCRIPTION_BAKEDGI", new ColorControl(new Color(1,1,1,0),true), ShaderStage.Fragment);
    }
}

03 注意

再次强调, 当你定义BlockFieldDescriptor时后, 第二个参, 即referenceName, 在下面的代码示例中即"BakedGI", 一定要全项目唯一, 否则会导致Block构建异常, 且无法正确传递值到Shader中.

1
2

public static BlockFieldDescriptor BakedGI = new(name, "BakedGI", "Baked GI",
            "SURFACEDESCRIPTION_BAKEDGI", new ColorControl(new Color(1,1,1,0),true), ShaderStage.Fragment);

原因可能需要查一下FieldDescriptor的name字段的调用链

1
2
3
4
5
6

public FieldDescriptor(string tag, string name, string define)
{
    this.tag = tag;
    this.name = name;
    this.define = define;
}
参考网页
URP, ShaderGraph
URP ShaderGraph 定制
本文由作者按照 CC BY 4.0 进行授权
